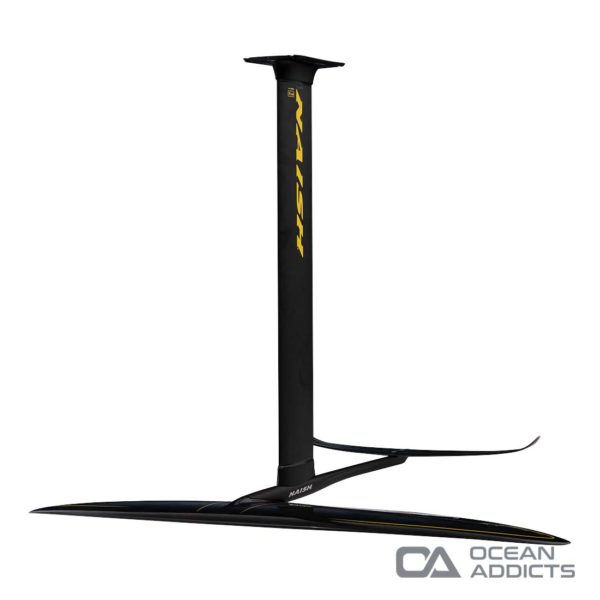

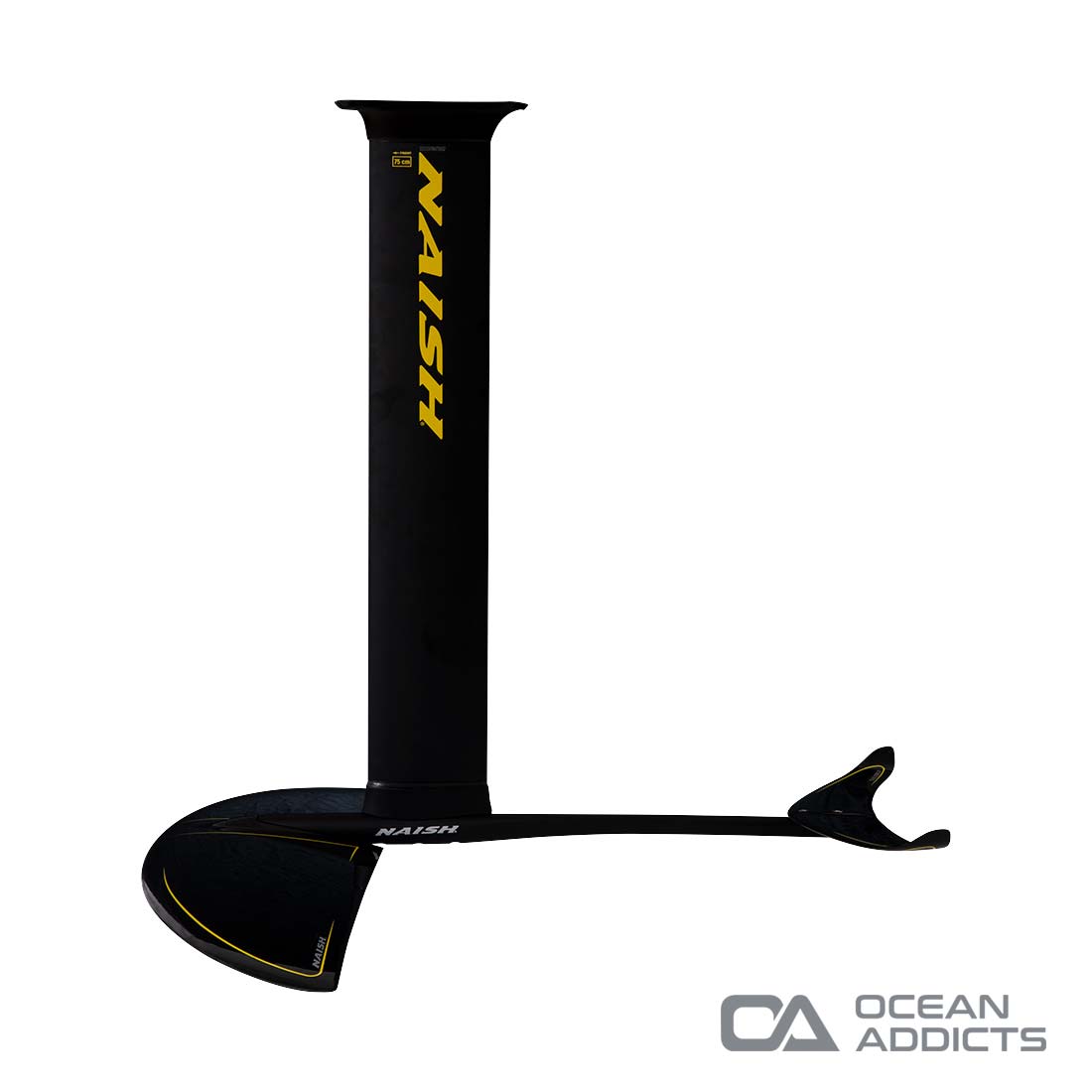

The S26 Naish Jet HA 2140 – Expert Performance Wing/Surf/SUP Hydrofoil
Expert Performance Foil Surfing / Downwind Foiling / Wing-Surfing
Designed for advanced and semi-advanced foilers looking to push their performance levels in surf, SUP, Wing-surfer, and downwind foiling.
New for this season is the 1040 and 2140, further expanding the HA range (= High Aspect Ratio).
The S26 Naish Jet HA 2140 hydrofoil is fast, nimble, and great for high-speed foiling.
Lighter riders will love the feel of this foil when wing foiling or surfing.
The wings feature high aspect ratio planforms and proprietary thin section profiles — the result is maximum glide, excellent pumping, and improved top speed while still maintaining the excellent turning and control that defines the Jet range.
To complement the high-end performance of these new wings, the complete foils feature a new high aspect stabiliser that emphasises pumping ability and glide.
Designed with a thinner profile and higher aspect ratio, they support the higher speed of the HA front wings while giving excellent response to rider input.
The Jet HA 2140 is ideal for riders up to 260 lbs.
Watch The Product Clip – S26 Naish Jet HA 2140
Check out the new video for the S26 Naish Jet HA hydrofoil range for 2021/2022:
The complete set includes:

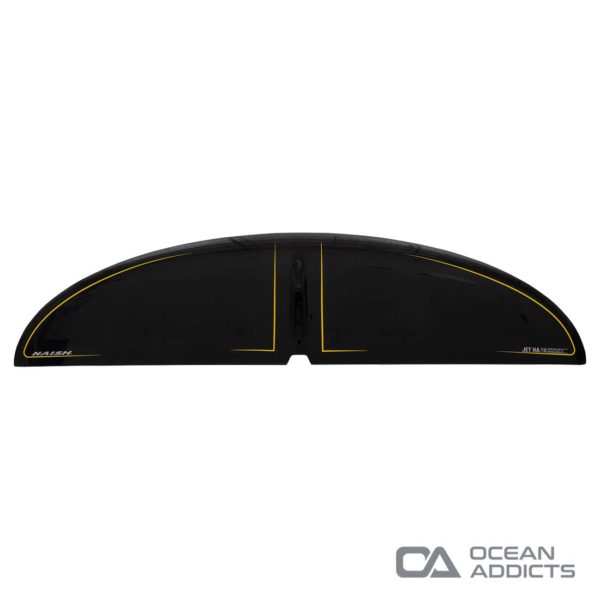

- Jet HA 2140 Front Wing
- Stabilizer HA 310
- 75 cm Mast
- 64 cm Fuselage
- 5 x 20 mm Torx Head Stainless Steel Screws (Connects Wings to Fuselage) = Superior torque + corrosion resistant
- 3 x 25 mm Torx Head Stainless Steel Screws (Connects Mast to Fuselage) = Superior torque + corrosion resistant
- 4 x 25 mm Torx Head Stainless Steel Screws and 4 x M6 Tab (Connects Standard Plate to Board) = Superior torque + corrosion resistant
- EVA Wing Covers
- Carry Case
Construction Features
- Naish Aluminum Masts are Available as Direct Connect as well as Deep Tuttle and Abracadabra Connection Systems
- Lightweight, Foam Filled Aircraft Grade, Triple Stringer Extruded Aluminum Mast with Bonded and Screwed Connections
- 100% Pre-preg 3K High Gloss Carbon Fiber Front Wing and Stabilizer
- CNC Precision Cut Lightweight Aluminum Fuselage with Corrosion Resistant Stainless Steel M6 Helicoils for the Front Wing and Stabilizer Connection
- Stainless Steel M6 Torx T30 Hardware for all Screwed Connections
Choose Your Own Mast
The S26 Naish Jet HA 2140 is available as a complete set or a semi-complete set where you can choose your own mast.
Check out the mast options here.
Technical Specifications
| Size | Front Wing Design | Aspect Ratio | Wingspan | Projected Surface Area |
|---|---|---|---|---|
| 75 cm | Front Wing Jet HA 2140 | 5.4 | 42.3″/107.5 cm | 331.7 in²/2140 cm² |
S26 Naish Jet HA 2140 – Construction
Accessories included:
Front Wing Cover Jet HA 2140
Stabilizer Cover
Foil Case L
More info on the official Naish website:
https://www.naishfoils.com/product/jet-ha-2140-complete/
See all our hydrofoils here:
https://oceanaddicts.wpengine.com/product-category/hydrofoil/hydrofoils/
Gallery: See the new S26 Naish Jet HA 2140 in action:
