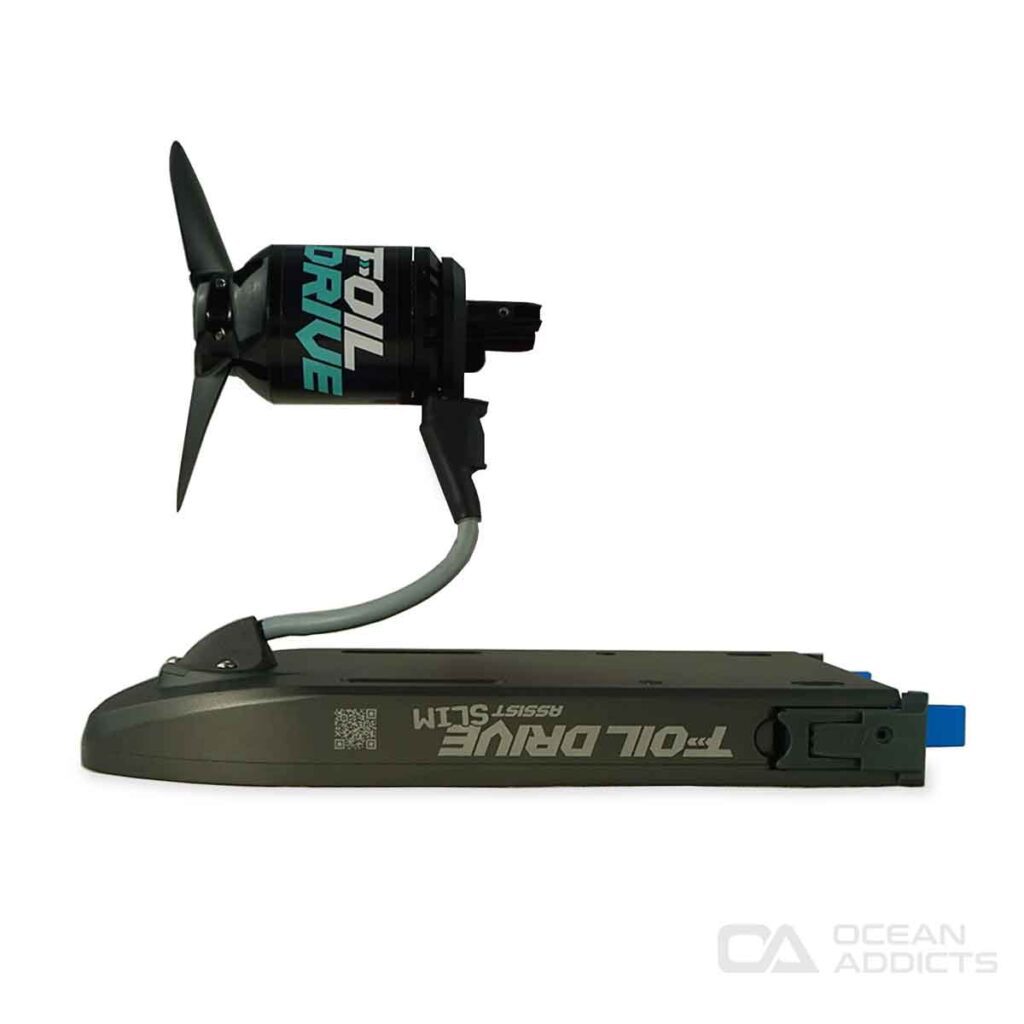

Foil Drive Assist SLIM
The Foil Drive Assist SLIM is the ultra compact model.
Less runtime but killer performance.
Your Foil Drive partner on the Sunshine Coast – and online.
Give us a call – or come into the store.
We’ll sort you out with all your questions, the right setup for you, and any help you might need down the track.
Watch The Product Clip
Who rides the Foil Drive Assist SLIM?
At just 35mm thin, the Assist Slim is engineered for the performance orientated rider.
No matter if its ripping turns on a prone board, sending downwind missions in bombing conditions, enabling smaller gear winging, or extending a pump foil session, the Assist Slim is a high-performance machine.
With reduced battery capacity comes shorter runtimes, however despite its size, the Foil Drive Assist SLIM with the Performance battery packs quite the punch, still able to launch heavier riders up on to foil with ease.
With its low weight positioned optimally under your board, once you’re up on foil you will hardly notice you still have it mounted up to your gear at all!

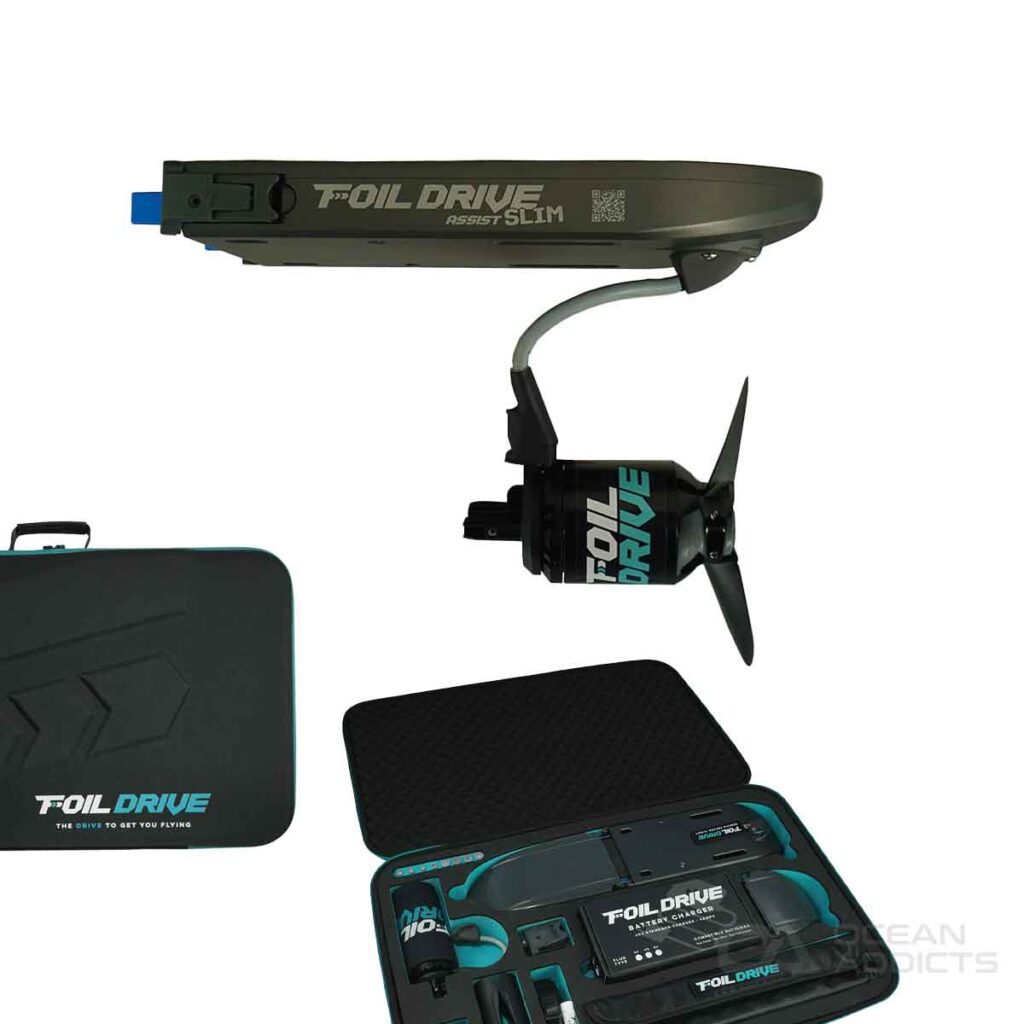

What’s included in the kit?
This kit comes with everything you’ll need to turn your existing foil and board into an e-foil.
*Choice of Slim Battery*
*Choice of Gen2 Motor with 2 Blade Propeller/Hub and Stubbie Cooler*
UNIVERSAL MAST ADAPTOR NOW INCLUDED!
Foil Drive Assist Slim Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone C
Foil Drive Nose Cone D
Foil Drive Universal Motor Pod – Rear
Foil Drive Universal Motor Pod – Short Nose
Foil Drive Universal Motor Pod – Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
Power Lead (AU, US or EU)
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist Slim Mast Plate Bolts 60mm
4x M6 Assist Slim Mast Plate Bolts 60mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth

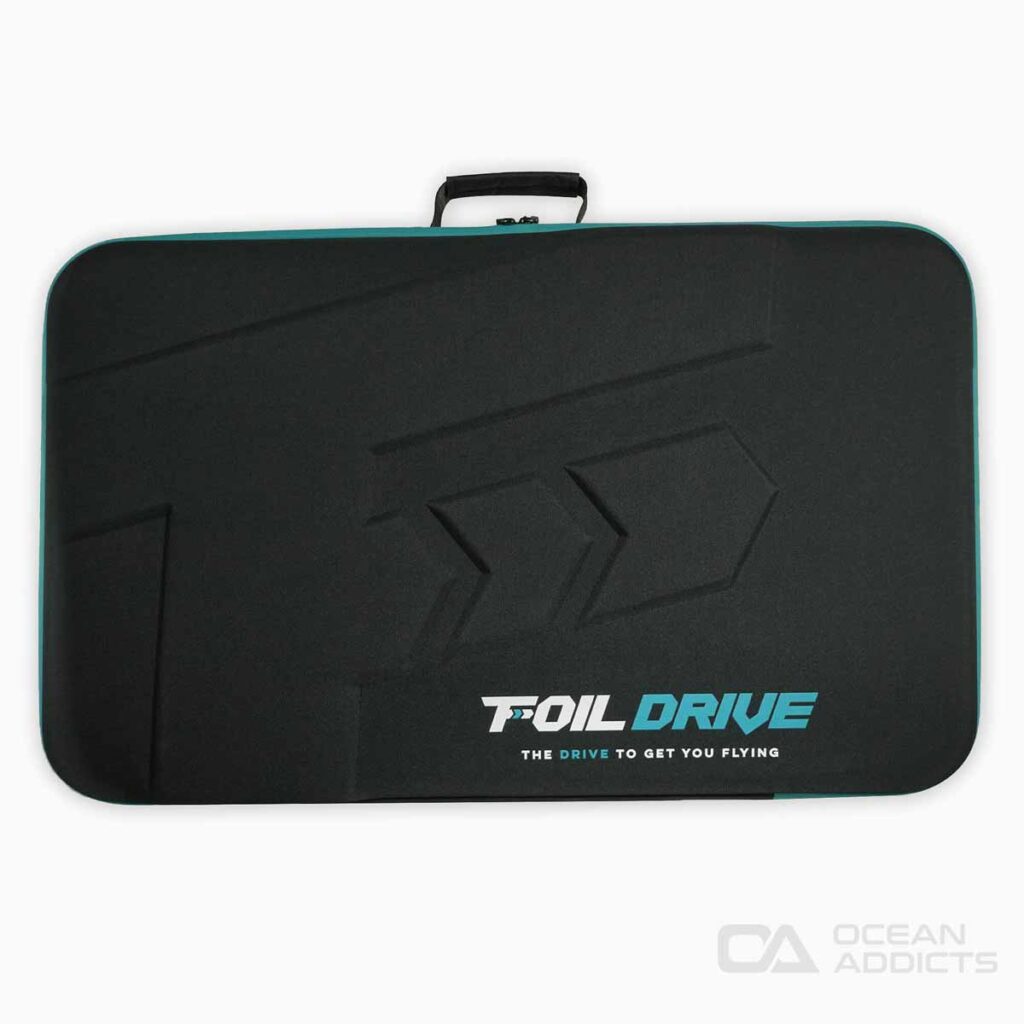

Foil Drive Gen2 Carry Case
Foil Drive Mounting Bolt Bag:
4x M8 Locking Tee Nuts
4x M6 Locking Tee Nuts
4x M34 x 20m Bolts for Locking Tee Nuts
Foil Drive Motor and Pod Bolts Bag:
4x Motor Pod Bolts (M3 x 12mm)
3x Puck Bolts (M3 x 12mm)
3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag:
2x O-Ring Seals – Foil Drive Assist Slim
2x Latch Assembly – Foil Drive Assist Slim
3x Motor Plug Bolts (M3 x 12mm)
4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
4x Latch Locking Bolts (M3 x 16mm)
2x Propeller Bolts (M3 x 30mm)
2x Latch Pivot Bolts (M3 x 45mm)
Which Propeller Height?
Choose the height you want the propeller to be.
Which Mast Adaptor?
We will know which mast adaptor you need.
Which foil and board you are riding?
After you’ve placed your order, we will get in touch anyway to find out and make sure you’ve ordered the right setup for you.
Call us – we’ll guide you through
Foil Drive Assist SLIM: Tech Specs
SLIM Performance Battery
The smaller Slim battery, great for those who’re wanting a punchy, high performing, light-weight ride at the cost of less runtime than the Endurance.
This battery must be used with the Assist Slim, Nose Cone D.
Capacity: 166.32Wh
Volts: 40V
Battery Weight: 1kg (2.2lbs)
Weight (Installed): 2.3kg (5lbs)
Dimensions (Installed):
L415 x W125 x H35mm
Dimensions (Battery Only):
L320 x W75 x H21mm
SLIM Endurance Battery
The larger Slim battery, great for longer runtimes. However, with a lower voltage, it doesn’t not provide the same level of thrust as the Slim Performance Battery.
This battery must be used with the Assist Slim, Nose Cone C.
Capacity: 241.92Wh
Volts: 28V
Battery Weight: 1.4kg (3lbs)
Weight (Installed): 2.8kg (6.1lbs)
Dimensions (Installed):
L510 x W125 x H35mm
Dimensions (Battery Only):
L410 x W75 x H21mm
Install on any board and mast
The Assist Slim mounts between your mast plate and the board.
As mast tracks are universal, this means it fits any board!
Simply use the provided Foil Drive Locking T Nuts and longer bolts.
Sandwich your Gen2 Foil Drive between your gear for optimal weight distribution and hydrodynamics.
Note: Boards with Carbon Tracks are experiencing connectivity issues. We are working on a solution for this, for more click here.
Watch the video how to unbox and assemble the kit, full video here:
