Foil Drive Assist MAX
The Foil Drive Assist MAX is the flagship model.
Maximum power, runtime, thrust and versatility.
Your Foil Drive partner on the Sunshine Coast & online.
Give us a call – or come into the store.
We’ll sort you out with all your questions, the right setup for you, and any help you might need down the track.
Watch The Video
Who rides the Foil Drive Assist MAX?
The MAX is suitable for any rider at any skill level for just about any type of foiling you can imagine.
It doesn’t matter if your surfing, down winding, Winging or in flat Water, the MAX is for everyone, and especially heavier riders and those wanting to just pull the trigger and fly will LOVE the extra run time and thrust.
This is probably the Foil Drive you should get.
The Assist SLIM is only for those seeking the few percent more performance (but you’ll have mich less runtime).
The Assist PLUS is first generation, but still available on sale – good choice if you’re on a budget.
If you’ve been around Foil Drive before, the Assist MAX is for anyone who loves the runtime of the Assist PLUS and is keen on more power and more runtime.
If you’re new to Foil Drive, the MAX is most likely the one you should get.

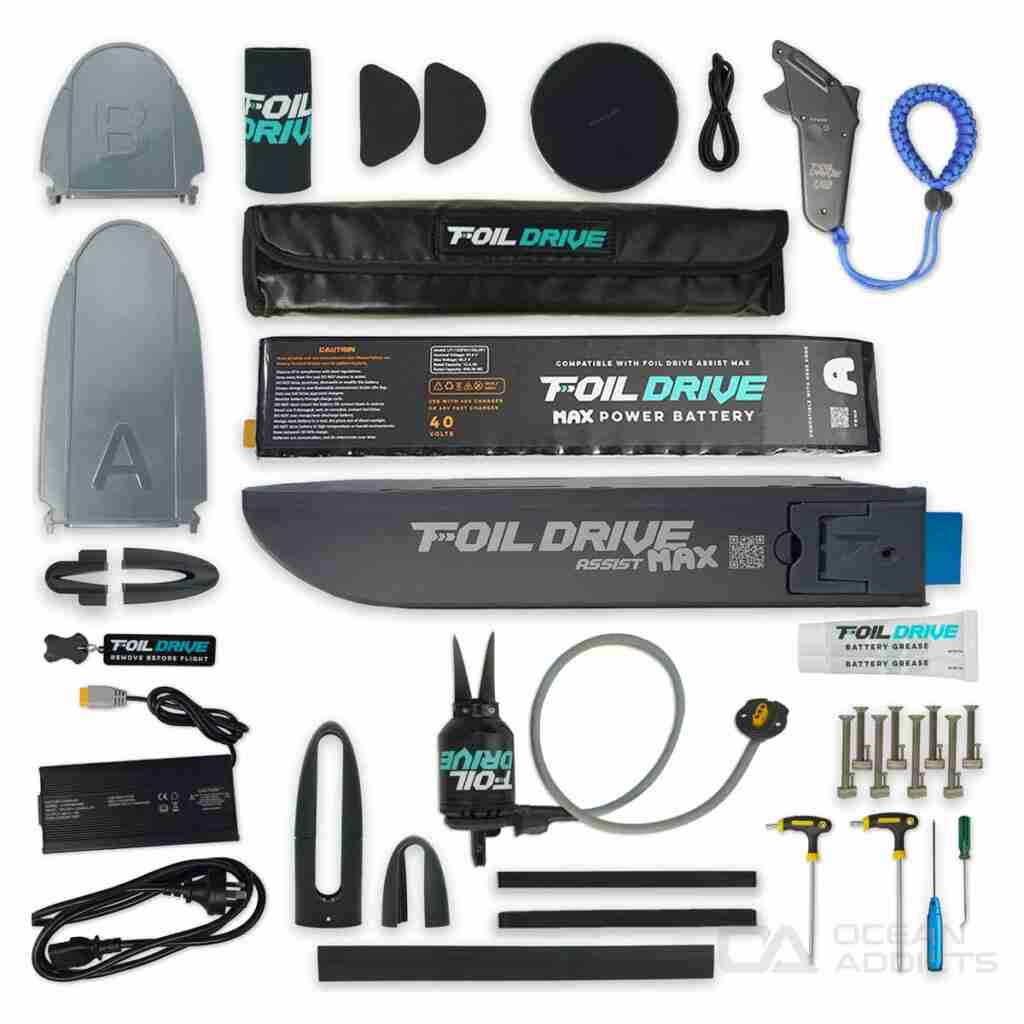

What’s included in the kit?
This Foil Drive Assist MAX kit comes with everything you’ll need to turn your existing foil and board into an e-foil.
*Choice of Battery with Lipo Bag*
*Choice of Gen2 Motor with 2 Blade Propeller/Hub and Stubbie Cooler*
UNIVERSAL MAST ADAPTOR NOW INCLUDED!
Foil Drive Assist MAX Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod – Rear
Foil Drive Universal Motor Pod – Short Nose
Foil Drive Universal Motor Pod – Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth

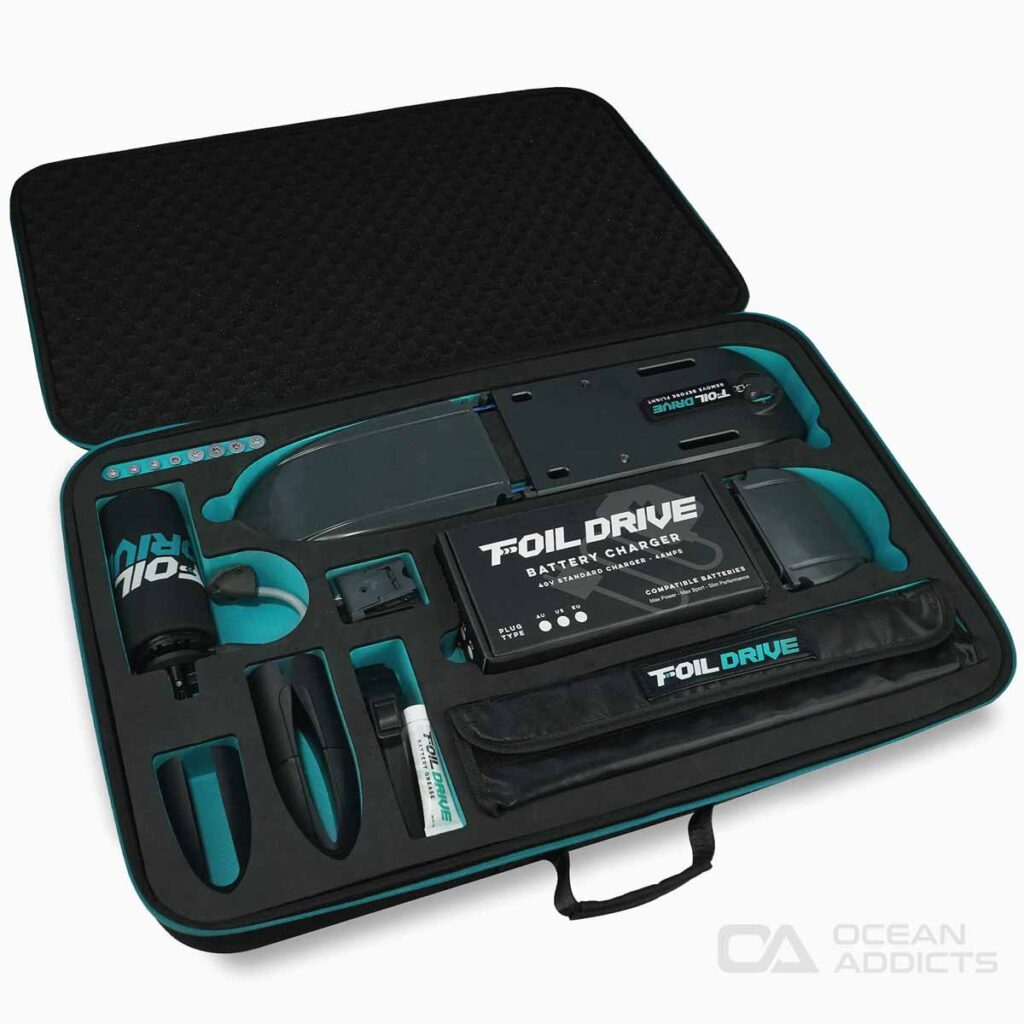

Foil Drive Gen2 Carry Case
Foil Drive Mounting Bolt Bag
– 4x M8 Locking Tee Nuts
– 4x M6 Locking Tee Nuts
– 4x M3 x 20mm Bolts for Locking Tee Nuts
Foil Drive Motor and Pod Bolts Bag
– 4x Motor Pod Bolts (M3 x 12mm)
– 3x Puck Bolts (M3 x 12mm)
– 3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag
– 2x O-Ring Seals – Foil Drive Assist MAX
– 2x Latch Assembly – Foil Drive Assist MAX
– 3x Motor Plug Bolts (M4 x 10mm)
– 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
– 4x Latch Locking Bolts (M3 x 16mm)
– 2x Propeller Bolts (M3 x 30mm)
– 2x Latch Pivot Bolts (M3 x 45mm)
Which Propeller Height?
Choose the height you want the propeller to be.
Which Mast Adaptor?
We will know which mast adaptor you need.
Which foil and board you are riding?
After you’ve placed your order, we will get in touch anyway to find out and make sure you’ve ordered the right setup for you.
Call us – we’ll guide you through
Foil Drive Assist Max: Tech Specs
Maximum Thrust:
27.5kg (60.6lbs) with Three Blade Alloy Props
Weight Range:
3.4 – 4.5kg (7.4-9.9lbs) depending on battery
Max. Dimensions: L525 x W125 x H50mm
Min. Dimensions: L415 x W125 x H50mm
Operating Voltage: 40V
Runtime (Generalised):
40min-4hrs depending on use case, battery and other variables.
Recharge Time:
Appx. 2-3.5hrs (Power Battery)
Batteries:
IP68 rated dust and water resistant.
Install on any board and mast

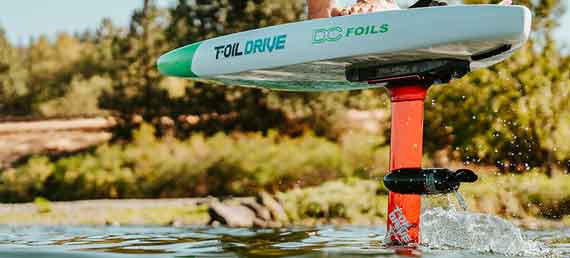

Gen2 Foil Drive Systems mount between your mast plate and the board.
As foil mast tracks are universal, this means it fit’s any board! Simply use the provided locking T nuts and longer mast bolts. Sandwich your Gen2 Foil Drive between your gear for optimal weight distribution and a clean top board surface.
Note: Boards with Carbon Tracks are experiencing connectivity issues. We are working on a solution for this, for more click here.
Watch the video how to unbox and assemble the kit, full video here:
Sounds good?
Give us a call so we can guide you through and get the perfect setup for you.
Not sure which foil drive to choose?
This is the flagship model, however, there is also the SLIM version and the gen 1 version available.
See the starting page here:
